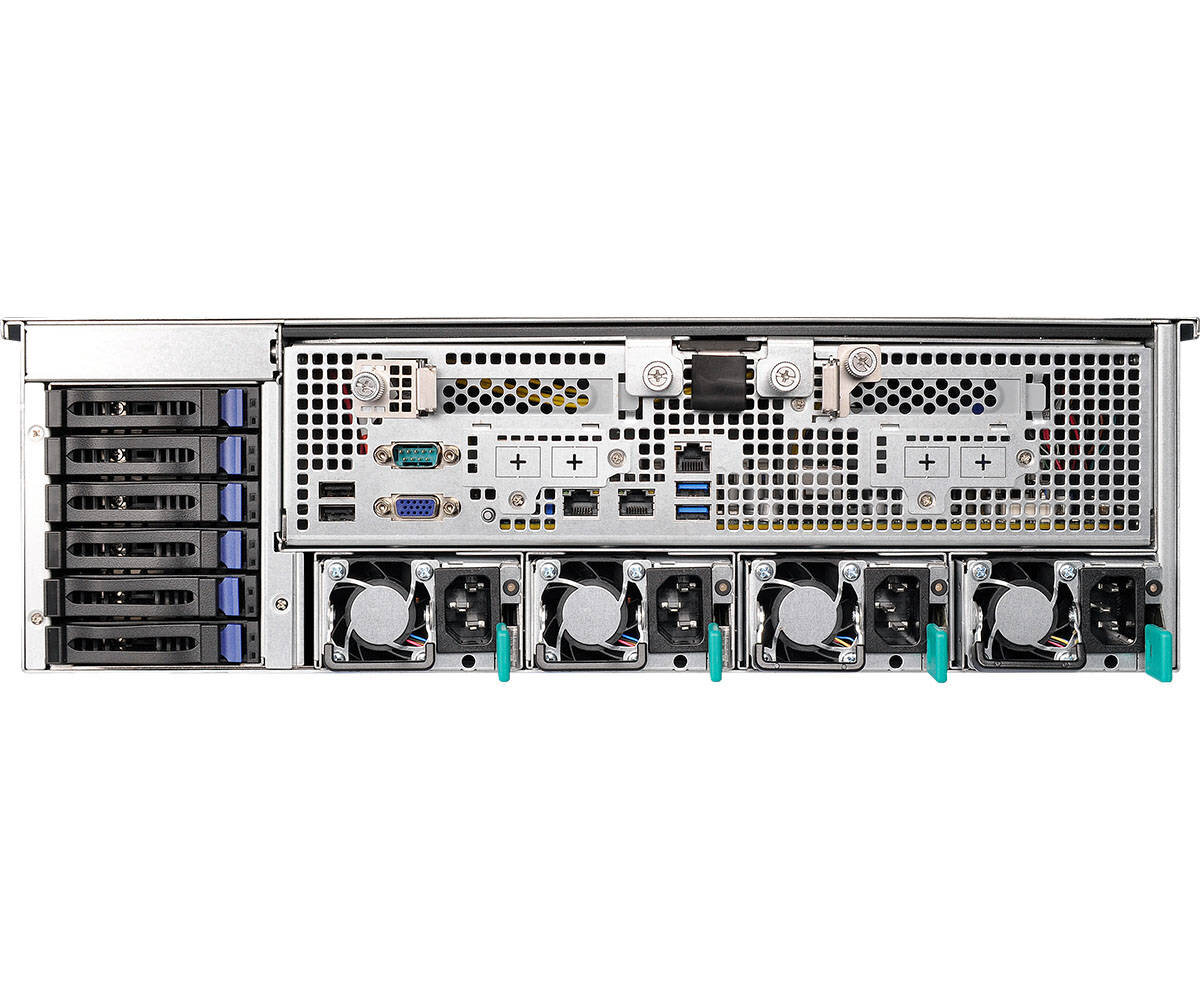

ASRock - 3U8G+
3U Rackmount with 1200W Redundant PSU (3+1) Dual Socket R3 (LGA2011) Intel Xeon E5-2600 v3&v4 Series Processors Supports 2400/2133/1866 16 x R DIMM, LR DIMM, max 512GB Supports 8x GPGPU/MIC card Supports Intel Dual GLAN and additional Mezzanine card to support 10G ethernet Supports 6 x SATA3 6.0 Gb/s (Hot Swap Bay) Supports 2 x Mezzanine LAN card or 2 x PCIE card
TIER III minősítésű adatközpontunkban most fél évre ingyenesen bérelhet tárhelyet.
De nem csak ez - kérjen tőlünk egyedi szerverkonfigurációt! Mi megtervezzük, összeállítjuk, szakértő módon telepítjük és kiterjesztett vagy NBD garanciát biztosítunk.
| termékkód | 202.157410 |
|---|---|
| Part number | 3U8G+ |
| EAN | 4063369139565 |
| Gyártó | AsRock |
| Elérhetőség | A beszállítónál készleten |
| Garancia (hónap) | 36 hónap |
| Súly | 20 kg |
| Az ár tartalmazza az összes törvényes díjat | |
Részletes információk
-
- System
Form Factor 3U Rackmount Dimensions 711 x 430 x 130.5 mm (27.6 x 16.9 x5.1 inches) Support MB EP2C612D16FM2 - Front Panel
Buttons Power On/Standby button
ID button*
System reset button
NMI button*LEDs Power LED
Identification LED*
Hard drive activity LED*
4x Network activity LEDs*
System event LED*I/O Ports 1 x VGA port
2 x Type-A (USB 2.0)- External Drive Bay / Storage
Front Side Drive Bay 6 Bay 2.5" SATA HDD (6Gb/s) - Power Supply
Type 4 (3+1), Redundant PSU Output Watts 1200W - System Fan
Fan 80 x 38 mm x 8 - Processor System
CPU Intel® Xeon® processor E5-2600 v3/v4 series Socket Dual Socket LGA 2011 R3 Chipset Intel® C612 - System Memory
Supported DIMM Quantity 16 DIMM slots Supported Type Quad Channel memory technology
Support DDR4 2400*/2133/1866/1600 R DIMM and LRDIMM
*Only E5-2600 V4 CPUs support DDR4 2400.Voltage 1.2V Additional PCIe switch Front Right Angle 2 x16 from each CPU to Midplane, total 4 x16 (need to bundle with ASRock Rack system board) - Server Management
BMC Controller ASPEED AST2400 IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN Features Watch Dog
NMI- Rear I/O
UID Button/LED 1 VGA Port 1 x D-Sub Serial Port 1 (COM1) USB 2.0 Port 2 Type-A (USB2.0) USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1) RJ45 2 + 1 (IPMI) Lan port (RJ45)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
-
- System BIOS
BIOS Type 128Mb AMI UEFI Legal BIOS BIOS Features Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8 Support
ASRock Rack Instant Flash- Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
* If with SAS HDD the operation temperature will change to 10°C ~ 30°CHumidity Non operation humidity: 20% ~ 90% ( Non condensing) - GPGPU card
GPGPU Watts Max 300w /per card Support GPGPU 8 x GPGPU card - Graphics
Controller ASPEED AST2400 VRAM DDR3 16MB - Hardware Monitor
Temperature CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature SensingFan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed ControlVoltage Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50_ PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB - System Switch board
Switch IC CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature SensingSupports GPU Card CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control- Physical Status
Form Factor SSI CEB Dimensions 12'' x 10.5'' (30.5 cm x 26.7 cm) - SATA/SAS Storage
PCH Built-in Storage Intel® C612 : 6 x SATA3 6.0 Gb/s (4 from 1 mini SAS connector + 2x SATA3 connector) - Ethernet
Interface 1000 /100 /10 Mbps Additional GbE Controller 2 x RJ45 by Intel® i350
1 x RJ45 Dedicated IPMI LAN port
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
Supports SR-IOV
LAN1 Supports NCSIOCP slot 2 x 8 Mezzanine slot support mezzanine card* or 2 x PCIE cards.**
Supports NCSI
* Each Mezzanine slot support 2 x 10G Base-T by Intel® X540 or 2 x SFP+ by Intel® 82599ES or 2 x GLAN by Intel® i350 mezzanine card.
**Support with 2 x8 additional half-length & low-profile add-on card by riser card.
Paraméterek
| PCIe teljes száma | 8 |
|---|---|
| A cpu gyártója | Intel |
| OCP/AIOM | 1 |
| Mélység mm | 711 |
| 2.5"-os meghajtóhelyek száma | 6 |
| 3.5"-os meghajtóhelyek száma | 0 |
| Merevlemezek száma | 6 |
| NVME slotok száma | 0 |
| Socket | 2011 R3 |
| Hatékonyság tanúsítás | Platinum |
| U méret | 3 |
| Teljesítmény (W) | 1200 |
